| Model |
TS-SX-880 |
| Overall Dimensions |
345x170x210cm |
| Gross Vehicle Weight |
900 kg |
| Vehicle Weight |
920kg (Gasoline) / 900kg (Diesel) |

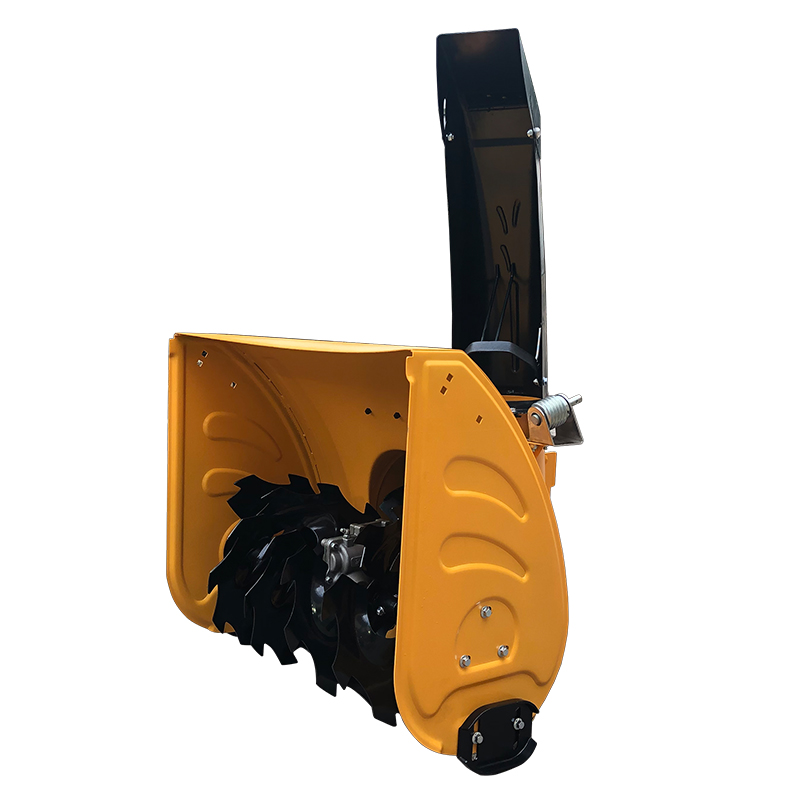

| Snow Removal Unit Weight |
186kg |
| Engine Power |
Loncin 764cc Gasoline Twin-Cylinder Engine (Optional Diesel/Single-Cylinder Gasoline Engines) |
| Fuel Tank Capacity |
20L (Gasoline) |
| Fuel Consumption |
3.5 L/h |
| Diesel Tank Capacity |
15L |
| Engine Oil Capacity |
1.8L |
| Starting System |
Electric Start |
| Dump Box Dimensions |
95x100x25cm |
| Steering System |
Steering Wheel |
| Power Steering |
Electric Power Steering (EPS) |
| Drivetrain System |
Fully Geared Transmission |
| Drivetrain |
Full-Time 4WD (Four-Wheel Drive) |
| Tire Type |
Industrial Snow Tires (Deep-Tread) |
| Gear Positions |
4 Forward + 1 Reverse |
| 1st Gear Speed |
Forward 1.96km/h, Reverse 2.37km/h |
| 2nd Gear Speed |
Forward 3.47km/h |
| 3rd Gear Speed |
Forward 6.67km/h |
| 4th Gear Speed |
Forward 14.72km/h |
| Wheelbase |
1300mm |
| Track Width |
1150mm |
| Braking System |
4-Wheel Hydraulic Disc Brakes |
| Snow Discharge Height |
300mm |
| Snow Discharge Angle Adjustment |
15° |
| Driver Take-Off (PTO) |
3-Stage Self-Oscillating Balanced Output |
