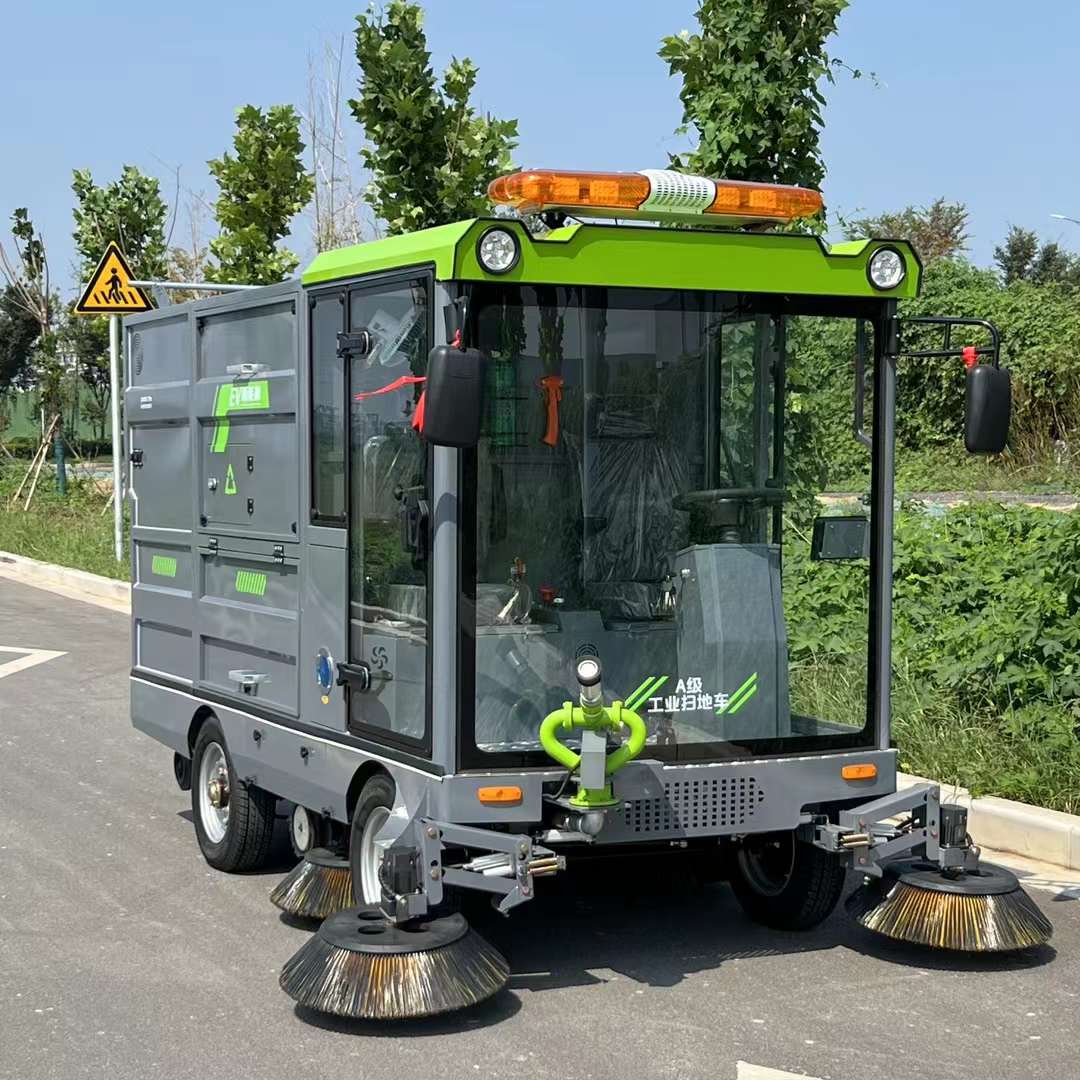

TS-G25-480L Road Sweeper

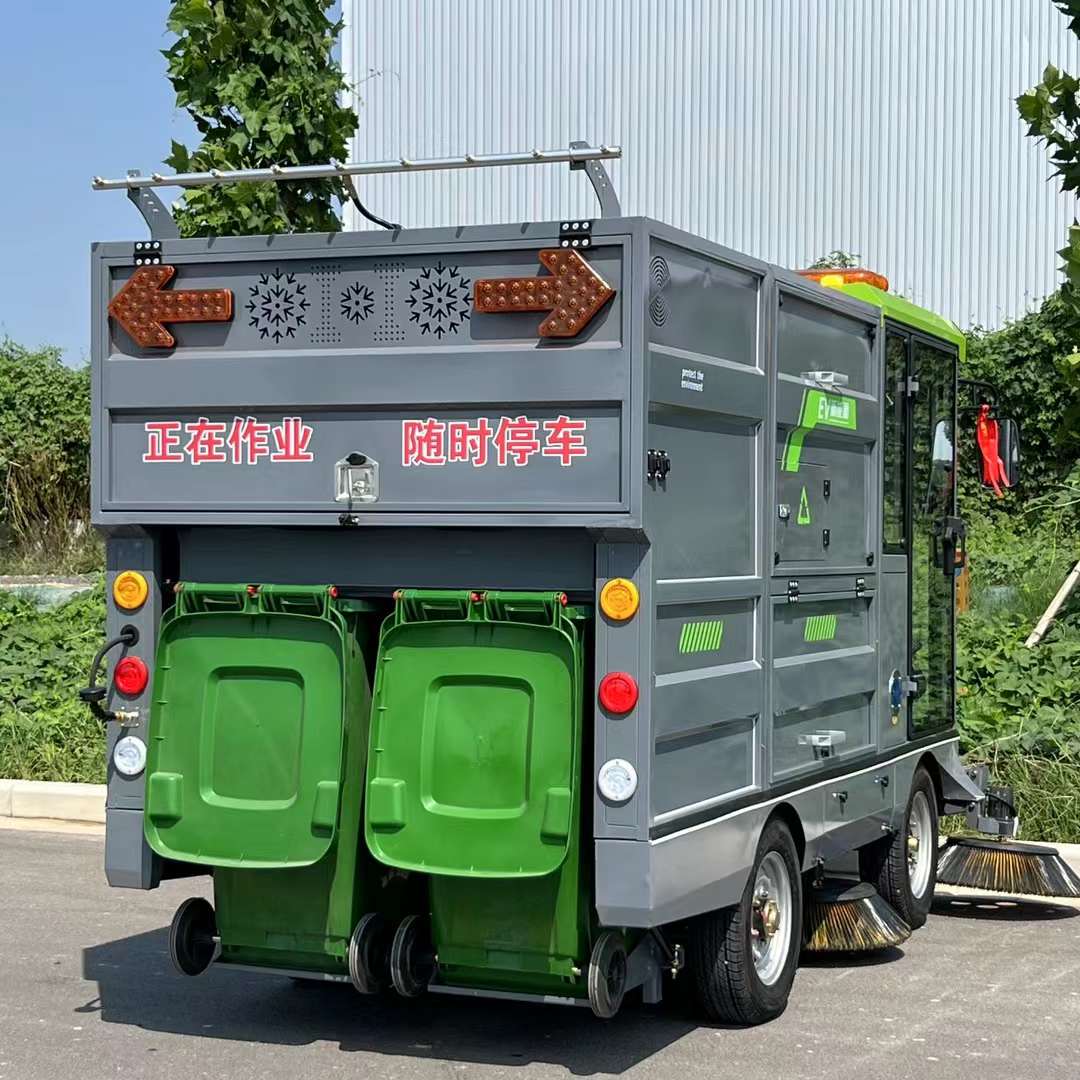

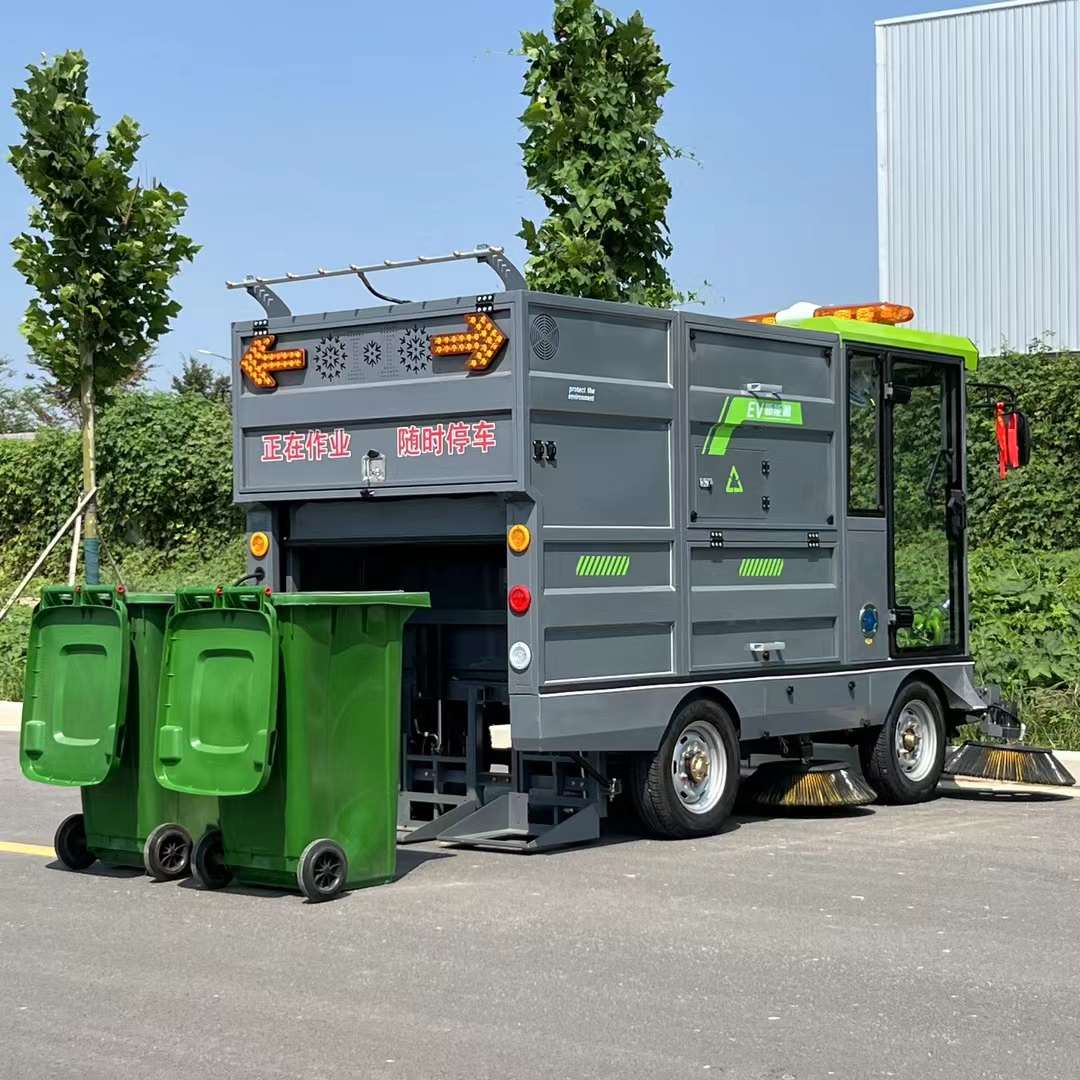

Vehicle Features: Main and auxiliary driver standing seats; Electronic power steering; Four-wheel pneumatic tires; Front high-pressure cannon spray; Rear 240L standard dual hanging bins; Triple filter dust control system (Industry exclusive).
Machine Performance: Combines suction, sweeping, and spraying to effectively suppress dust and thoroughly clean ground garbage and dust.
Applications: Suitable for cleaning factory workshops, parks, streets, lanes, docks, residential communities, warehouses, stadiums, schools, airports, and other areas.

Efficiency: The cleaning efficiency is 10 times that of traditional manual sweeping. One sweeper can replace 8-12 cleaning workers.

Parameter	Value / Specification
Model	TS-G25-480L Pure Suction Dual-Bin
Cleaning Width	2450 mm
Working Efficiency	20000 – 35000 m²/h
Working Time	3 – 8 h
Dustbin Capacity	480 L (Dual 240L bins)
Side Brush Diameter	Front: 700 mm, Rear: 600 mm
Travel Speed	0 – 30 km/h
Overall Dimensions (LWH)	4050 mm 2450 mm 2250 mm
Water Tank Capacity	600 L
Vacuum Filtration Area	20 m²
Tire Model	165R13LT
Control Mode	Intelligent Voice System (Electric Dust Shaking Function)
Coating Process	Full Vehicle Electrophoretic Painting
Headlights	Four-way LED Headlights
Taillights	Dedicated LED Lights for Scooter
Top Light	Roof-mounted Operation Warning Light
Reversing Light	With Reversing Buzzer
Battery Type	Standard Lithium Battery
Battery Voltage/Capacity	Standard 60V 240AH Lithium Battery, Optional 60V 300AH Lithium Battery
Drive Motor	3000 W Intelligent Gear Shift
Suction Fan Motor	4000 W
Side Brush Motor	4 * 100 W
Motor Voltage	60 V
High Pressure Water Pump	1500 W
Handheld High Pressure Gun	1 unit
High Pressure Cannon (Fogger)	900 – 1100 W (Adjustable)
High Pressure Hose Reel	10 M
Model	Dedicated for Sweeping Vehicles
