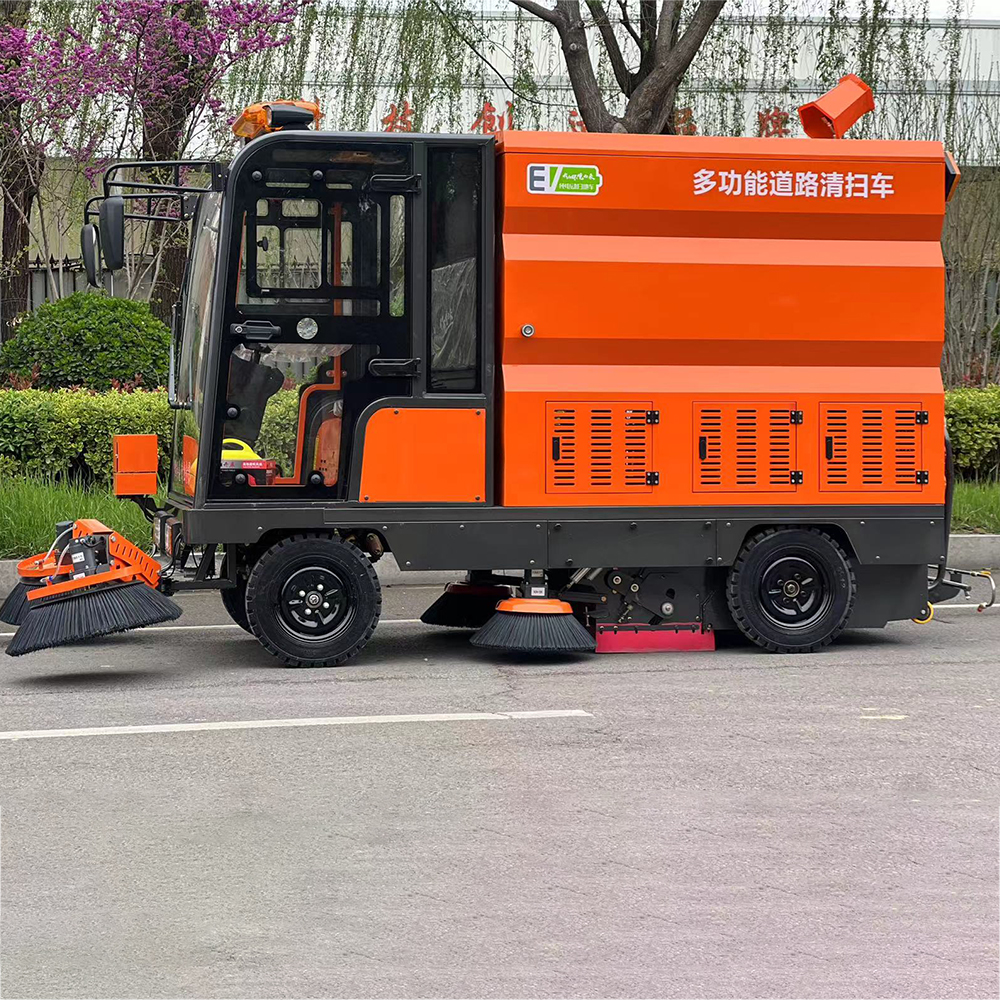

TS-2500 Road Sweeper

TS-2500 Road Sweeper Multi-function Electric Road Pollution Removal Vehicle Street Sweeping Road Sweeper Cleaning Machine

Description

Performance Characteristics

  1. One-Button Cruise System: Provides the pleasure of easy operation.

  2. High-Pressure Front Spraying System: Enables multi-directional washing during the sweeping process.

  3. High-Pressure Hedging System: Effectively eliminates Poplar and Willow catkins, cleaning the road surface thoroughly in one pass.

  4. Front and Rear Sprinkler Function: Completes sweeping and sprinkling simultaneously, improving work efficiency.

  5. Rear Spraying Function: Efficiently handles spray disinfection and dust control tasks with ease.

  6. High-Pressure Gun Cleaning Function: Cleans various types of dirt and can be used for landscaping.

  7. High-Pressure Rotating Fog Gun Function: Rotates and adjusts for multi-angle spraying, making dust removal and spraying more convenient.

  8. Rear High-Pressure Flushing Function: Provides high-pressure flushing after cleaning with strong pressure for a cleaner ground.

  9. 800kg Super Capacity Water Tank: Eliminates the hassle of frequent water refills.

  10. Four Fans and Four Dust Vibrating Devices: Ensures cleaner and more thorough cleaning.

  11. 380 Litre High Capacity Dumpster: Allows for longer continuous working hours.

  12. 2200W Permanent Magnet Synchronous Heavy-Duty Motor: Compact size, high efficiency, and more reliable operation.

  13. Solid, Enlarged Wide Tires: Ensures more stable and safer driving, eliminating the need for tire repairs.

  14. Hydraulic Disc Brake System: Offers more stable and safer braking.

  15. Automotive-Grade Electrophoresis and Paint: Results in a smoother, brighter, and more durable surface.

  16. Full-Range Wiper (Bus-like): Increases safety factor during sudden rain.

  17. Parking Assist System: Features an ultra-clear display for safer and more convenient reversing.

  18. Hi-Fi Car Bluetooth Stereo: Adds enjoyment to sanitation work.

  19. LED Vehicle Warning Lights: High luminance improves driving safety.

Specification Name Parameter
General Specifications
Sweeping Width 1550-2500 mm
Drive Motor 2.2 kW
Water Tank Capacity 800 L
Dumpster/Hopper Capacity 380 L
Power Source (Lead Acid Battery) 48V 200Ah (Optional)
Continuous Working Hours 6-8 h
Work Efficiency 15000-22500 m²/h
Gradability 25%
Working Speed 0-9 km/h
Maximum Travel Speed 0-12 km/h
Turning Radius 5130 mm
Dimensions (LWH) 3950 * 1700 * 2135 mm
Curb Weight 1210 kg
Power Specifications
Operating Power (1 Middle Brush + 4 Side Brushes + 4 Fans + 4 Dust Vibrating Devices) 1000W + (120W * 4) + (350W * 4) + (120W * 4)
High Pressure Pump Power 1100 W
High Pressure Pump Max Pressure 12 MPa
High Pressure Pump Max Flow Rate 10 L/min
Brush Specifications
Middle Brush Length 800 mm
Side Brush Diameter (Front) 700 mm * 2
Side Brush Diameter (Rear) 500 mm * 2
Filtration Area 20 m²
Spraying/Washing Specifications
High Pressure Front Spraying Range 8-10 m
High Pressure Hedging Range (1) 13-16 m
High Pressure Hedging Range (2) 10 m
High Pressure Rotating Fog Gun Range 8-10 m
After Spraying Water Range 6 m
Rear High Pressure Flushing Width 1400 mm
High Pressure Water Hose Length 15 m (Optional)
